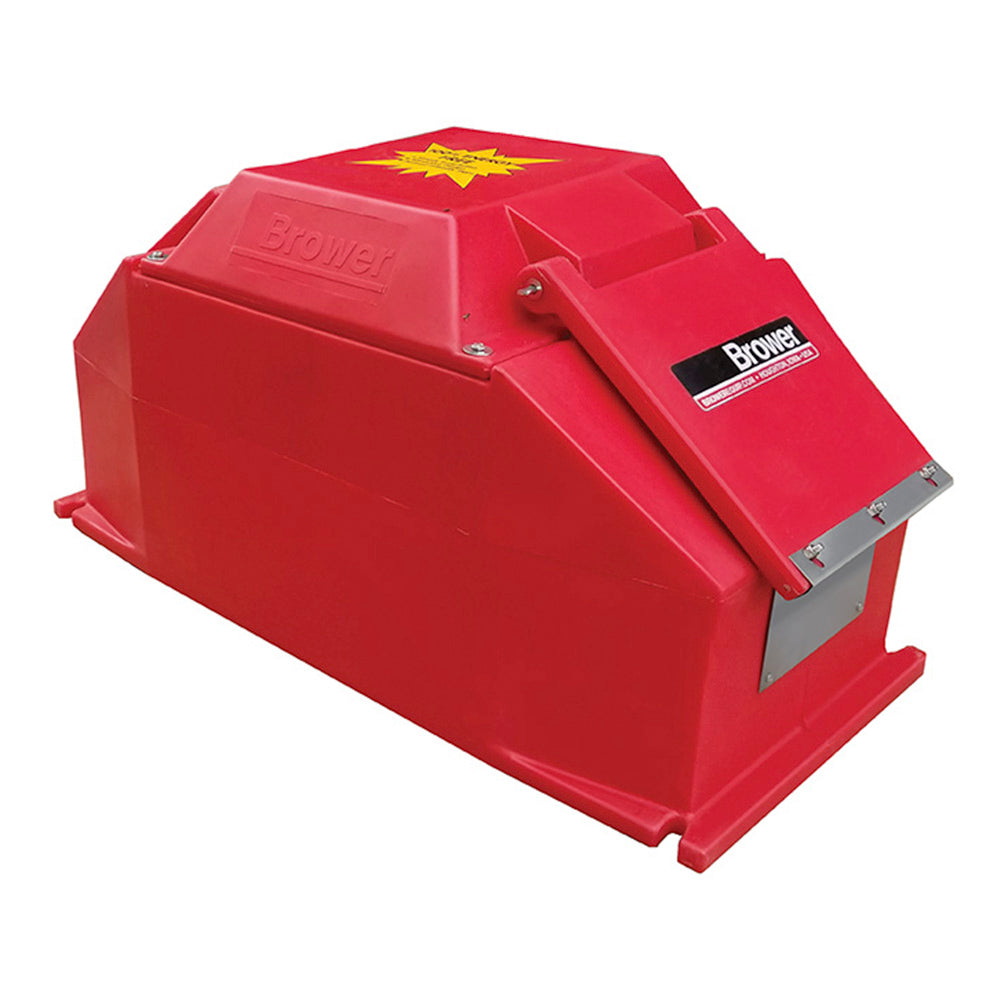

Brower Model MPM10 Energy Free Swine Waterer
Brower Model MPM10 Energy Free Swine Waterer
Part Number MPM10
Couldn't load pickup availability
The Brower MPM10 is an energy free waterer for swine that features a shorter lid to accommodate the pigs drinking while protecting the edge against daily abuse with a stainless steel guard.
-
Capacity: 10 gallons
- Herd Size: 10-15 swine for energy free use.
How They Work
Heat energy is provided by ground water entering the drinker between 40 degrees F and 56 degrees F. Brower waterers are heavily insulated to hold the heat provided by ground water. As further protection a unique patented baffle isolates the drinking water from the main energy storage compartment under the valve cover.
Usage replenishes the heat gradually lost. The minimal winter drinking activity needed should result in water being replaced twice a day (10-15 animals depending on drinker capacity, size of animals and whether or not the drinker is sheltered).
NOTE: If the water entering is less than about 40 degrees F, such as water from a pond, mountain spring water or colder ground water, you may experience icing in the drink openings.
1. Stainless steel bolts and removable top afford easy access to plumbing.
2. Unique baffles guard against icing and keep valve operating under severest conditions
3. Notched flanges for easy anchoring.
4. Achieve a quality installation with Brower Anchor Package. Order Model 383344 which contains 4 anchor bolts, 4 flat washers, 4 plates and 4 nuts, all stainless steel.
5. Weather strip and an insulated sleeve for the supply line come with each unit.
6. Simple installation - no heat well needed; use an 8-12 inch tile; can be fitted on most existing pads.
7. Sealed bottom keeps moisture and rodents out.
8. Two 2-inch Drain holes for fast clean out.
9. Foam insulation between walls has an r-valve of 7.14 per inch.
10. Double wall construction contains hindered amine light stabilizer, the most effective ultraviolet inhibitor.
11. Seamless sidewall cannot leak
12. Tolerance to water level - you don't have to worry about summer and winter water levels. If the water level is too high on a ball or float type closure, closures can stick.
13. Dependable, non-siphoning valve - proven and trouble free.
14. Animal friendly insulated flaps. Livestock can drink out of both flaps at the same time - not always so with ball closure. No Pulleys and cables to foul and rust.
