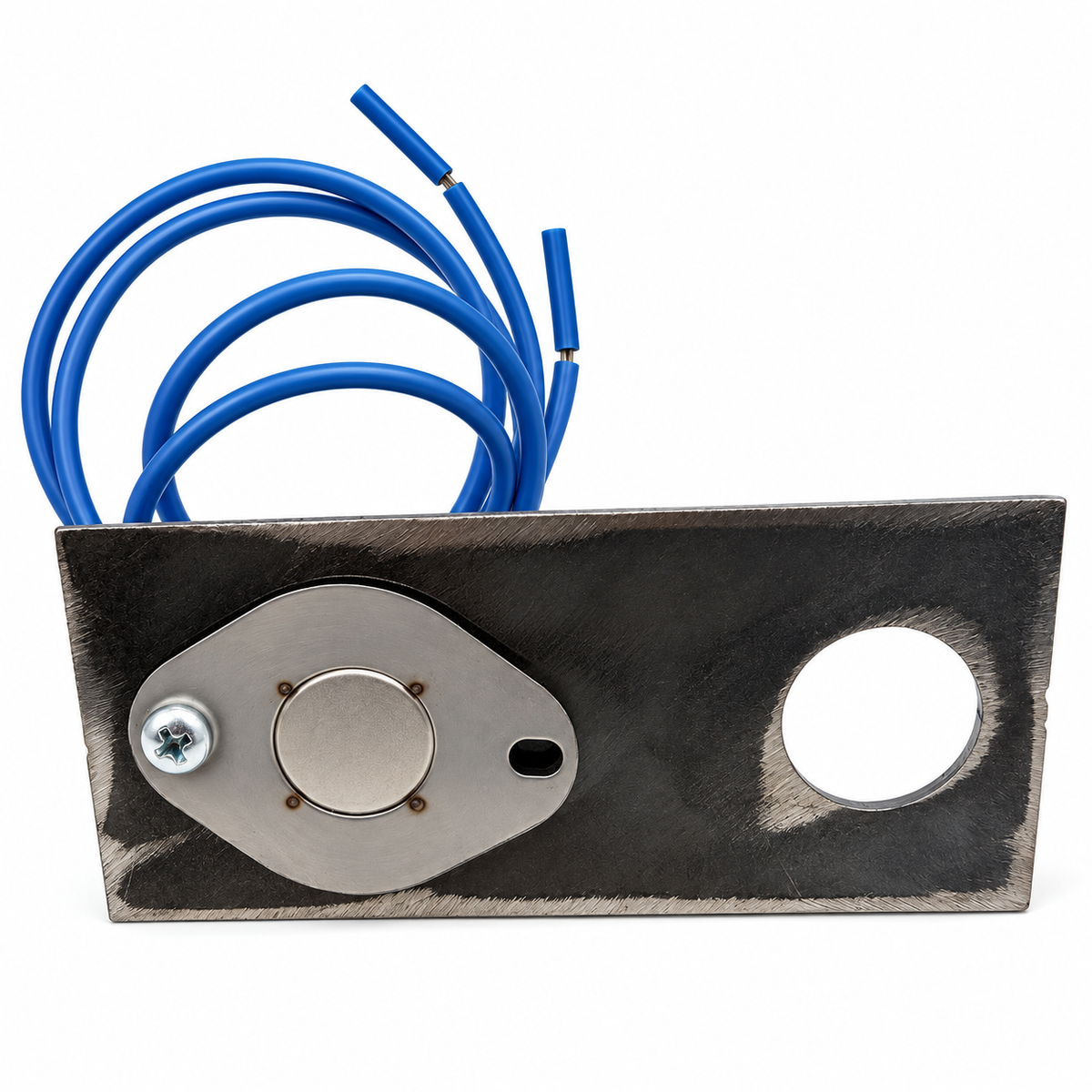

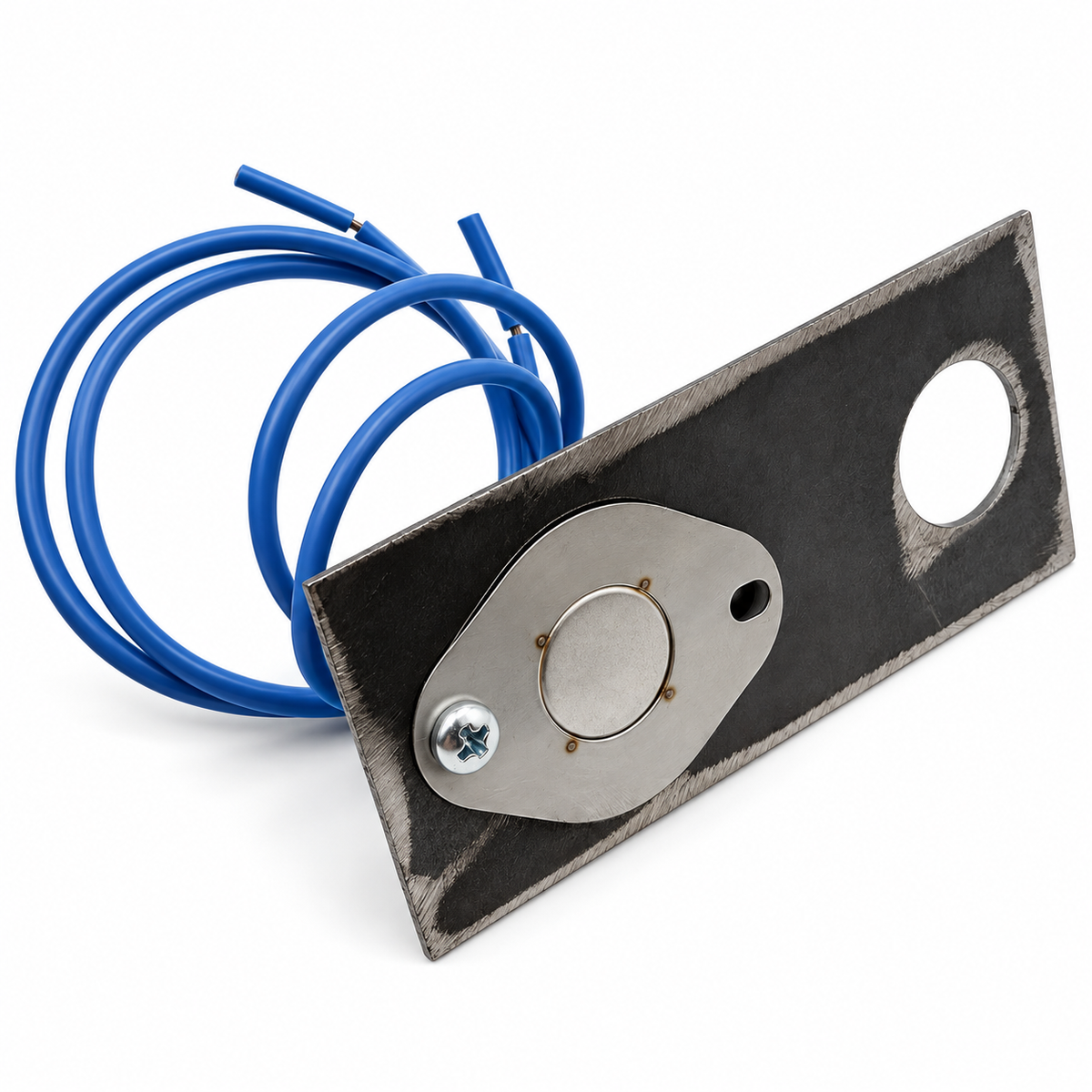

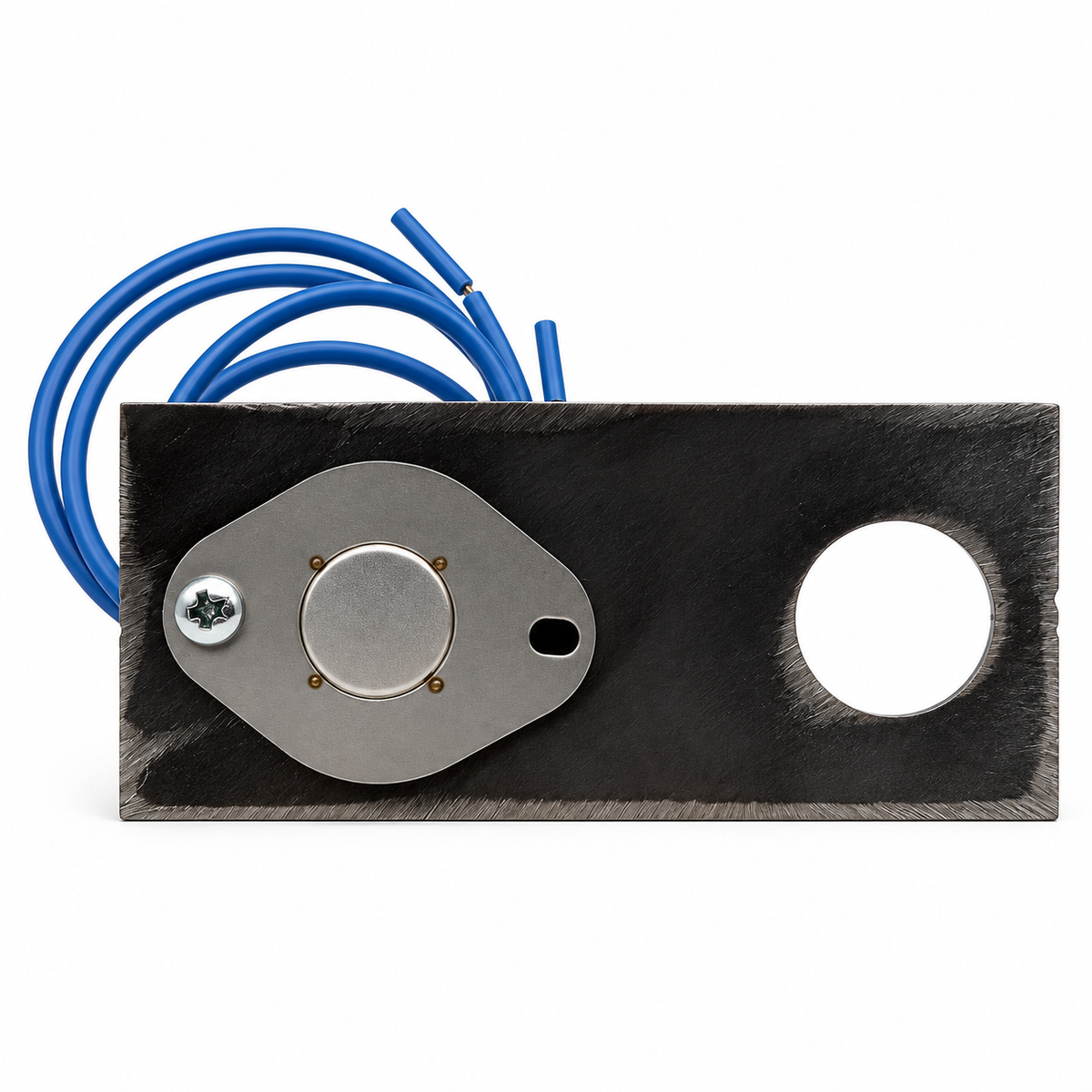

Franklin Maverick Thermostat with Bracket 41606
Franklin Maverick Thermostat with Bracket 41606
Part Number 41606
Couldn't load pickup availability
5.0 / 5.0
(2) 2 total reviews
Ensure efficient temperature regulation in your Franklin Waterer with the Maverick Thermostat, complete with bracket (#41606). This retrofit kit serves as a replacement for the FRU thermostat.
This assembly facilitates easy installation and reliable operation, preventing water from freezing during cold weather and is easy to install without removing the FRU thermostat.
The Franklin Maverick Thermostat regulates the heaters in the following Franklin automatic waterers:
- F1
- F5
- F10
- H2
- RAE
INSTRUCTIONS
Preset Thermostat (blue disc on side of trough - outside of trough). Skide thermostat to the right to turn it up and slide it to the left to turn it down.
OR
Plate curves under trough and may be moved closer to trough to shut off. Pull away from trough so cold air can hit thermostat and turn it on.
***Warmer - pull down / Cooler - push up***
Turns Franklin Heaters on at 36 degrees and turns off at 48 degrees.
