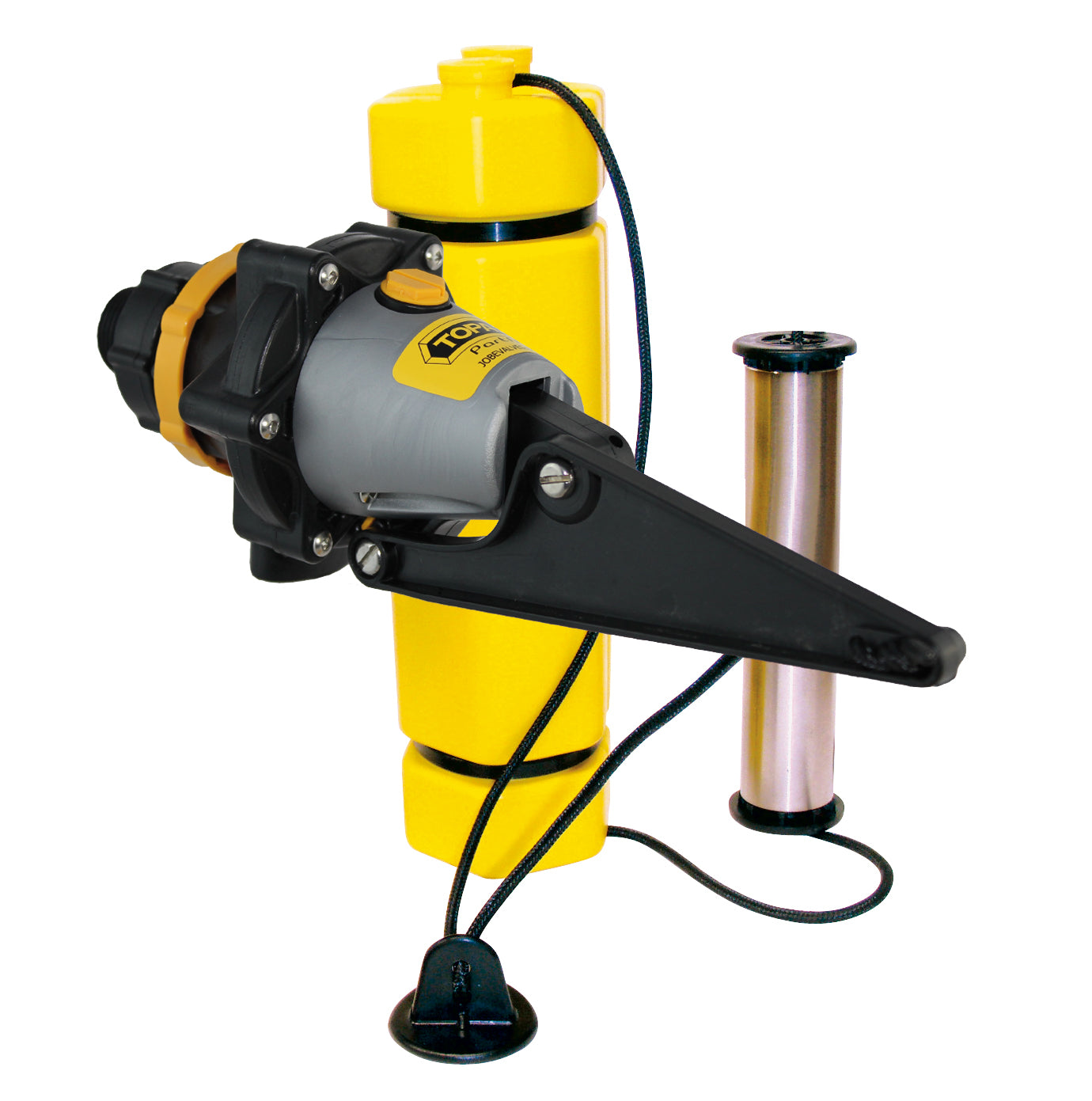

Jobe 1 1/4" Topaz Differential Long Tail TPVD0125DLT

Jobe 1 1/4" Topaz Differential Long Tail TPVD0125DLT

Part Number TPVD0125DLT

Regular price $243.99 USD
Regular price Sale price $243.99 USD
Sale Sold out
Shipping calculated at checkout.

The Jobe 1 1/4" Topaz Differential Long Tail Valve (TPVD0125DLT) is a high-flow, float-operated valve designed for automatic filling of water tanks and troughs. It features an adjustable water level differential ranging from 20mm to 60mm, minimizing pump cycling and enhancing system efficiency. Constructed from corrosion-resistant materials, this valve can be mounted horizontally or vertically and operates effectively within a pressure range of 15 to 150 PSI.

Applications:

Maintaining Water Levels in:

  • Water Storage Tanks
  • Water Cisterns
  • Irrigation Applications

Principle of Operation

  • The valve mounts at the top of the tank. It fits easily through a thin-walled tank or screws into a threaded tank inlet.
  • As the tank empties the weighted float travels down the cord until it hits the bottom stop. The valve then opens immediately to give a full flow.
  • The valve now runs constantly and the weighted float rises until it hits the upper float stop. This lifts the arm and the valve shuts down.
  • Observe the pressure that your pump runs at while the tank is filling. Set the pressure switch to turn the pump off at a pressure at least one bar above the running pressure.

Features

  • High flow
  • Start and stop levels can be easily adjusted to give water level differentials from 50mm to 2.5 m • Keeps pump operation to a minimum.
  • Detach Valve Seal Access System for quick access to the valve seal (Patented)
  • Ideal for all makes and models of tanks.
