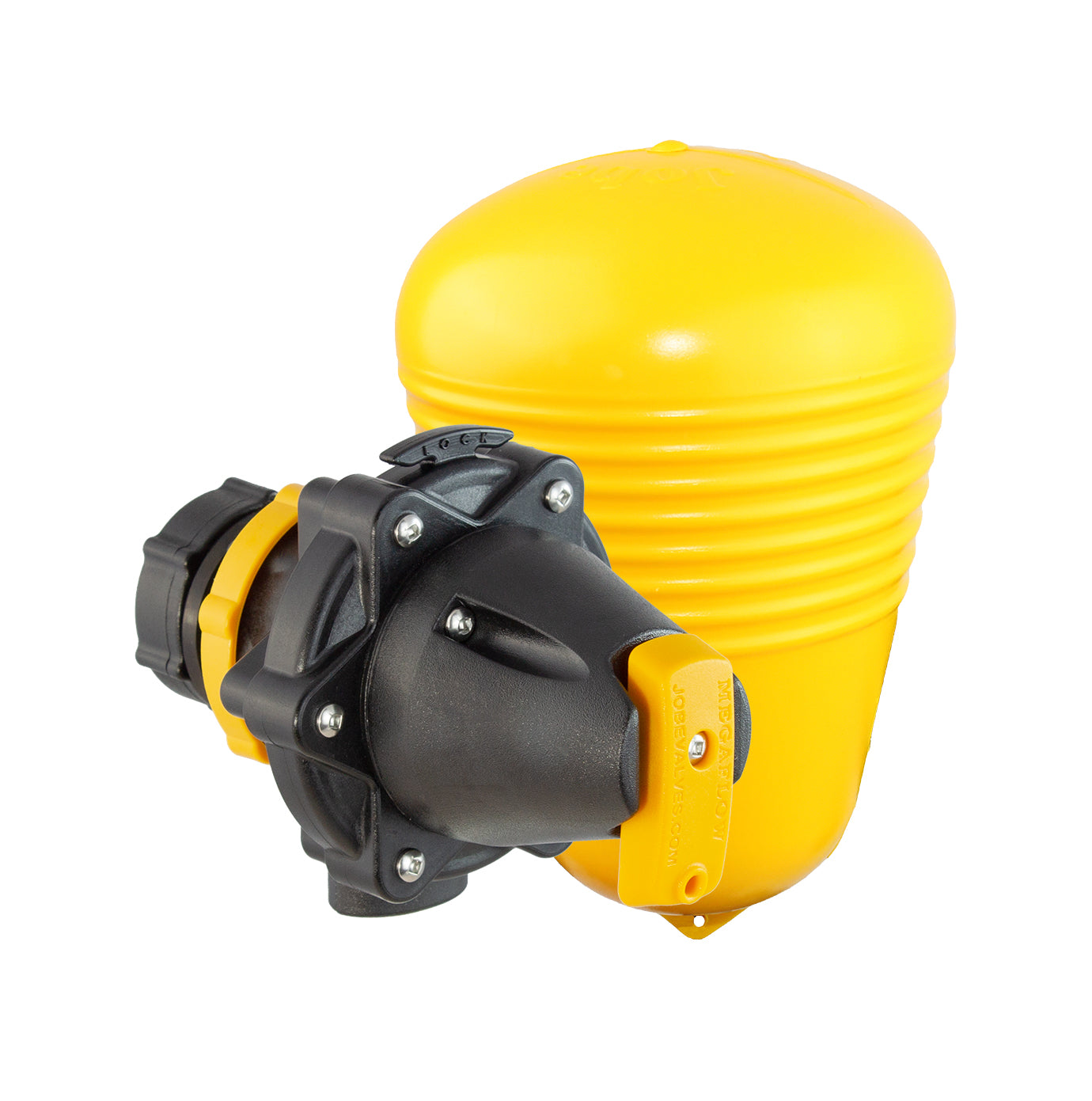

Jobe Megaflow 1" inlet Valve with Short Tail MFV0100D

The Jobe 3/4" Megaflow Trough Valve is a float-operated valve designed for the automatic filling of water troughs. The short-tail version is ideal for thin-walled tanks and is configured exclusively for underwater mounting. The valve operates via a nylon cord connecting the float to a pilot valve; as water levels drop, the pilot valve activates the main diaphragm valve. Known for its high flow capacity, compact design, and durable, non-corrosive construction, the Jobe Megaflow is a reliable choice for efficient water management.

Note: The short-tail version does not include a backnut and seal washer. For these accessories, consider the long-tail version.

Mounting Positions:

• Side or bottom of the tank.

Installation Tip:
Flush the waterline before installing to prevent debris from clogging the valve.

Features:

• High-flow capacity for efficient water filling.
• Compact, robust design.
• Adjustable water level differential: 3/4" to 2 1/2" (increases with pressure).
• Positive on/off operation.
• Lock-off functionality with cord lock.
• Pressure rating: 5-150 PSI.
• Built-in inlet filter for debris prevention.
• Made from corrosion-resistant materials.
• Underwater installation reduces freezing risk.
• Resistant to damage from livestock.

Megaflow Disassembly and Assembly Video
