Jobe Rojo 3/4" Partfill Long Tail RJVP0075
Jobe Rojo 3/4" Partfill Long Tail RJVP0075
Part Number RJVP0075
Couldn't load pickup availability

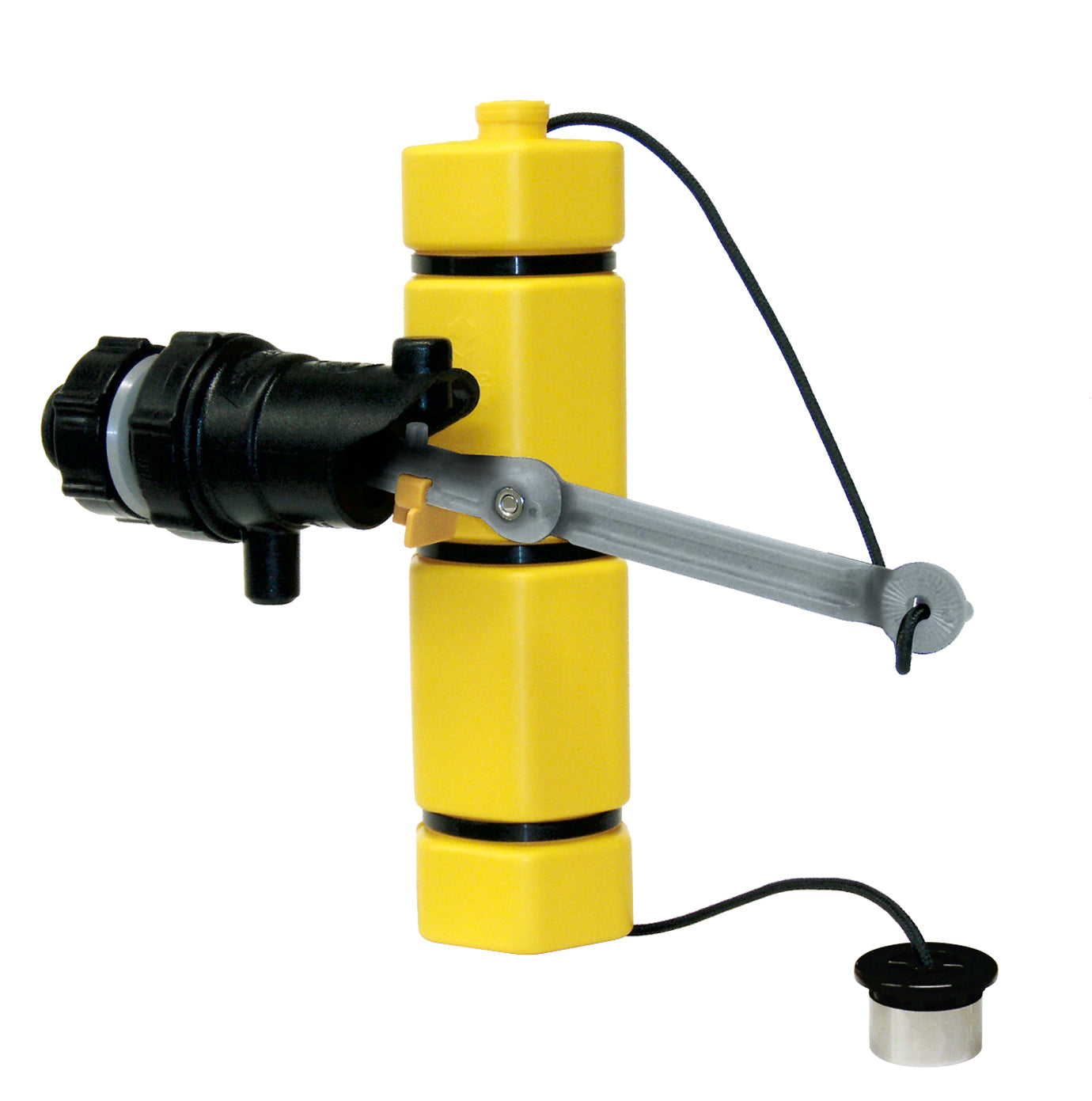

The Jobe Rojo 3/4" Partfill Float Valve is a low-flow valve designed specifically for rainwater harvesting tanks. This valve automatically maintains a minimal water level during periods of low or no rainfall, ensuring uninterrupted service while preserving tank capacity for future rain.
Specifications:
- Pressure Range: 0-150 PSI
- Flow Rate: 5-6 gallons per minute
Installation Tip:
Flush the waterline before installation to prevent debris from clogging the valve.
How It Works:
The valve installs through the sidewall of a storage tank, mounted above the overflow level to avoid backflow. When the tank empties, the weighted float drops to the bottom stop, activating the valve. Water flows until the float lifts clear of the bottom stop, ensuring minimal levels during dry periods. The valve only operates when rainfall is insufficient to keep the water level above the bottom stop. For best results, consider plumbing a safety overflow pipe into your tank.
This compact, efficient valve is an excellent solution for sustainable rainwater harvesting and water level management.
- Suitable for all makes and models of rainwater harvesting tanks.
- Compatible with trickle flow restrictors.
- Compact and space-efficient design.
- Made from durable, non-corrosive materials.
- Built-in non-return valve to prevent backflow.
- Lock-off switch for manual control.
- Long-tail thread with a secure back nut for easy mounting.
Maintaining Water Levels In:
- Rainwater harvesting tanks
- Water cisterns
- Irrigation and process systems
