Jobe Topaz Valve w/DLT 1" Inlet (TPV0100DLT)

Jobe Topaz Valve w/ DLT 1" Inlet (TPV0100DLT)

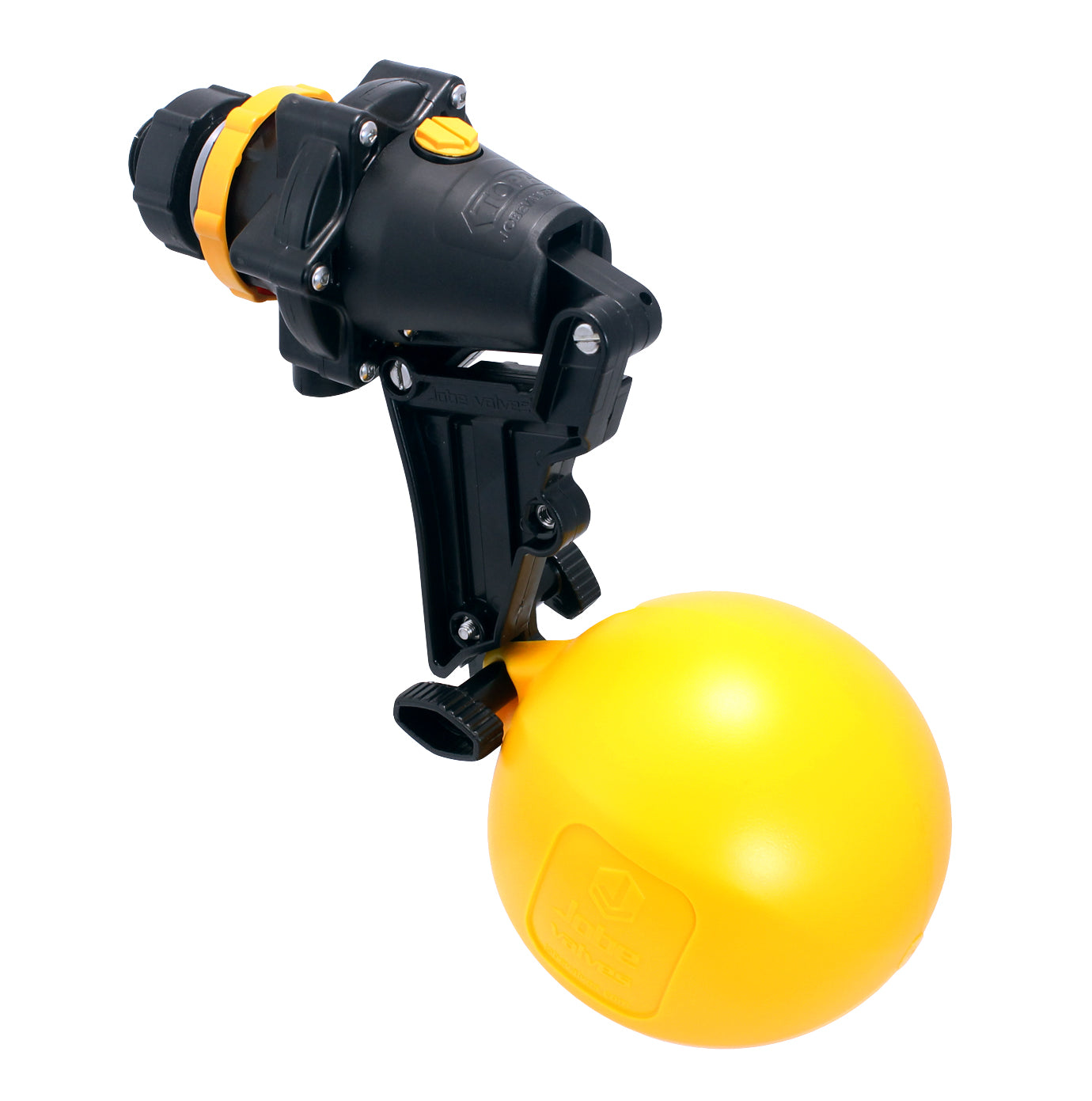

The Jobe Topaz 1" Inlet Valve with Detachable Long Tail (DLT) is a high-flow, float-operated valve designed for the automatic filling of water troughs, tanks, cisterns, and more. Configured for both above and below water mounting, this valve combines adaptability and efficiency. The float operates a small pilot valve, activating the main diaphragm valve for precise water control. With its durable, non-corrosive construction and versatile mounting options, the Topaz valve is a dependable solution for water management.

Key Features:

• Detachable Long Tail (DLT): Ideal for side, bottom, or top mounting.
• Includes Backnut and Seal Washer: Ensures a secure and leak-proof installation.
• Easy to Maintain: Valve body screws apart by hand, with automatic flow shut-off for convenient servicing.
• Built-In Check Valve: Prevents backflow and ensures system reliability.
• Adjustable Float Angle: Fully customizable for precise water level settings.
• High Flow Performance: Efficient water delivery for demanding applications.
• Pressure Range: Operates from 5-100 PSI; low-pressure model (0-75 PSI) available for increased flow.
• Temperature Resistant: Functions effectively at temperatures up to 140°F (60°C).
• Lock-Off Switch: Provides manual control when needed.
• Durable Design: Made from corrosion-resistant materials for long-lasting use.

Applications:

• Animal drinking troughs
• Water storage tanks
• Water cisterns
• Air conditioning systems
• High-pressure cleaning systems
• Irrigation systems

Installation Tip:
Flush the waterline before installation to prevent debris from clogging the valve.

The Jobe Topaz Valve w/ DLT 1" Inlet offers the perfect combination of reliability, high flow, and easy maintenance, making it an excellent choice for a variety of water system needs.
