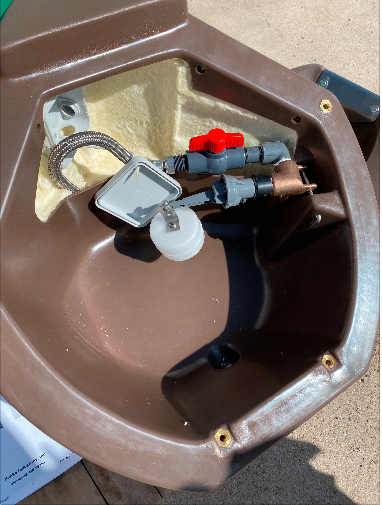

Introducing the JUG 303 Stall Fount Corner Mount Energy Free Waterer (#13303), thoughtfully crafted with your horse's well-being in mind. Its rotomolded plastic construction boasts smooth, rounded edges to ensure animal safety, while the stainless steel bite plate deters damage from cribbing.
This waterer provides the same clean, fresh water technology as the JUG stand-alone models, featuring a 2-gallon reservoir and a quick-recovery float valve. Ideal for warm climates or heated barns, it offers versatile installation options, allowing waterline connections from below or overhead.
Maintenance is a breeze with the external drain plug and float adjustment screw, enabling easy cleaning and water level management.
NOTE: This waterer is not intended to be used energy free in a climate that freezes. This waterer is ideal for warm weather climates or a heated barn where freezing is not an issue.
PRO-TIP: There is a slight mark on each bowl that shows the suggested level of water to have in each unit.
The Stall Waterer has an external drain plug and a float adjustment screw to aid in ease of maintenance, cleaning, and water level management.
The Stall Waterer features a versatile installation allowing you to run the waterline from below or overhead. The overhead application will require a small drill to drill a small access hole into the back corner of the unit and plumb in your water from the top.
- Animals adapt easily - no flaps to lift, discs or balls to push. Animals drink naturally, even young ones
- Clean, Clean water - The Draw Tube/ Feed Trap doesn't allow debris to fall into the tank reservoir, which means less maintenance, and clean water.
- Super Insulation - The strong polyethylene body has thick urethane foam which means cooler water in the summer and warmer water in the winter.
- External Adjustment Screw - Provides easy adjustment of the water level in the bowl when introducing new animals to their water source. After they learn there is a constant clean water supply, lower the water level. It’s easy for you and your animals.
- Mounting - The 303 Corner Mount JUG is mounted against a flat wall of a stall. Use your own hardware or purchase the Wall Mounting Kit #13550 separately.
- External Drain Plug - For easy draining of water from the JUG’s 2-gallon reservoir.
- Bite Guard - An 18 gauge stainless steel guard, prevents damage from cribbing. Capacity: The 303 JUG with its 2-gallon reservoir, and quick recovery Float Valve, offers plenty of water capacity for your horses, large or small.
- Valve - The Fluidmaster Float Valve used on the 303 is among the most reliable, trouble-free valves available today.
The Stall Waterer features a versatile installation allowing you to run the waterline from below or overhead. The overhead application will require a small drill to drill a small access hole into the back corner of the unit and plumb in your water from the top.
There are a number of waterline hook-up options when placing an Energy Free 303 in a heated barn or in a warm climate area. The waterline can come from underneath either on its own or through a riser tube but commonly comes to the 303 overhead as shown in the picture to the left.
Modern, yet simple, The 303 JUG features the most modern up-to-date styling available in a horse stall waterer with very few moving parts.
