JUG 303 Stall Fount Flat Back Heated 13343
JUG 303 Stall Fount Flat Back Heated 13343
Part Number 13343
Couldn't load pickup availability

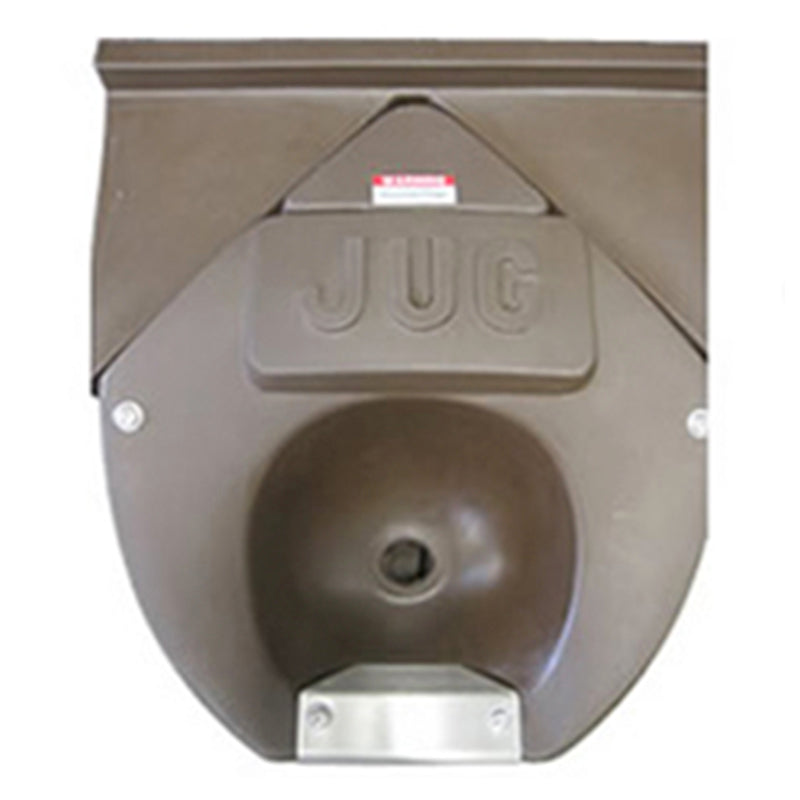

The JUG 303 Stall Fount Flat Back Heated Waterer (Part #13343) is crafted to provide your horse with safe, clean, and reliable hydration, even in cold weather. Its durable rotomolded plastic construction features rounded edges to ensure animal safety, while a stainless steel bite plate prevents cribbing damage.
With a 2-gallon reservoir and a quick-recovery float valve, this waterer delivers consistent access to fresh water. The built-in heating element ensures the water remains ice-free during winter, making it an excellent year-round solution for your barn.
Features:
- Marked bowls indicate the ideal water level.
- External drain plug and float adjustment screw simplify maintenance, cleaning, and water level management.
- Versatile installation: connect the waterline from below or overhead. Overhead installations require a small drilled hole in the back corner for waterline access.
The JUG 303 Heated Stall Fount is designed to keep your horse’s water fresh and at the right temperature, combining durability, safety, and convenience in one reliable unit.
- Animals adapt easily - no flaps to lift, discs or balls to push. Animals drink naturally, even young ones
- Clean, Clean water - The Draw Tube/ Feed Trap doesn't allow debris to fall into the tank reservoir, which means less maintenance, and clean water.
- Super Insulation - The strong polyethylene body has thick urethane foam which means cooler water in the summer and warmer water in the winter.
- External Adjustment Screw - Provides easy adjustment of the water level in the bowl when introducing new animals to their water source. After they learn there is a constant clean water supply, lower the water level. It’s easy for you and your animals.

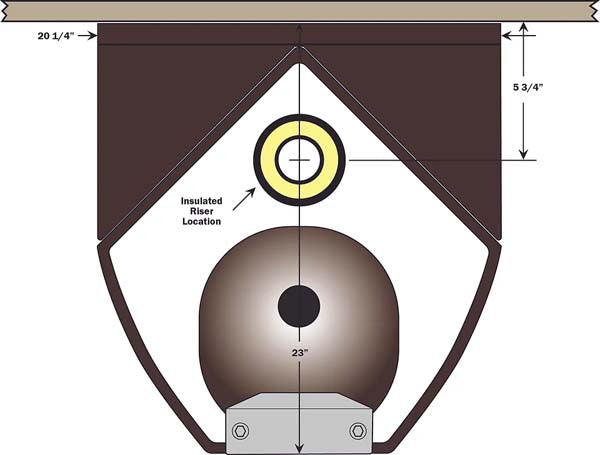

- Mounting - The 303 FB JUG is mounted against a flat wall of a stall. Use your own hardware or purchase the Wall Mounting Kit #13550 separately.
- External Drain Plug - For easy draining of water from the JUG’s 2-gallon reservoir.
- Bite Guard - An 18 gauge stainless steel guard, prevents damage from cribbing. Capacity: The 303 JUG with its 2-gallon reservoir, and quick recovery Float Valve, offers plenty of water capacity for your horses, large or small.

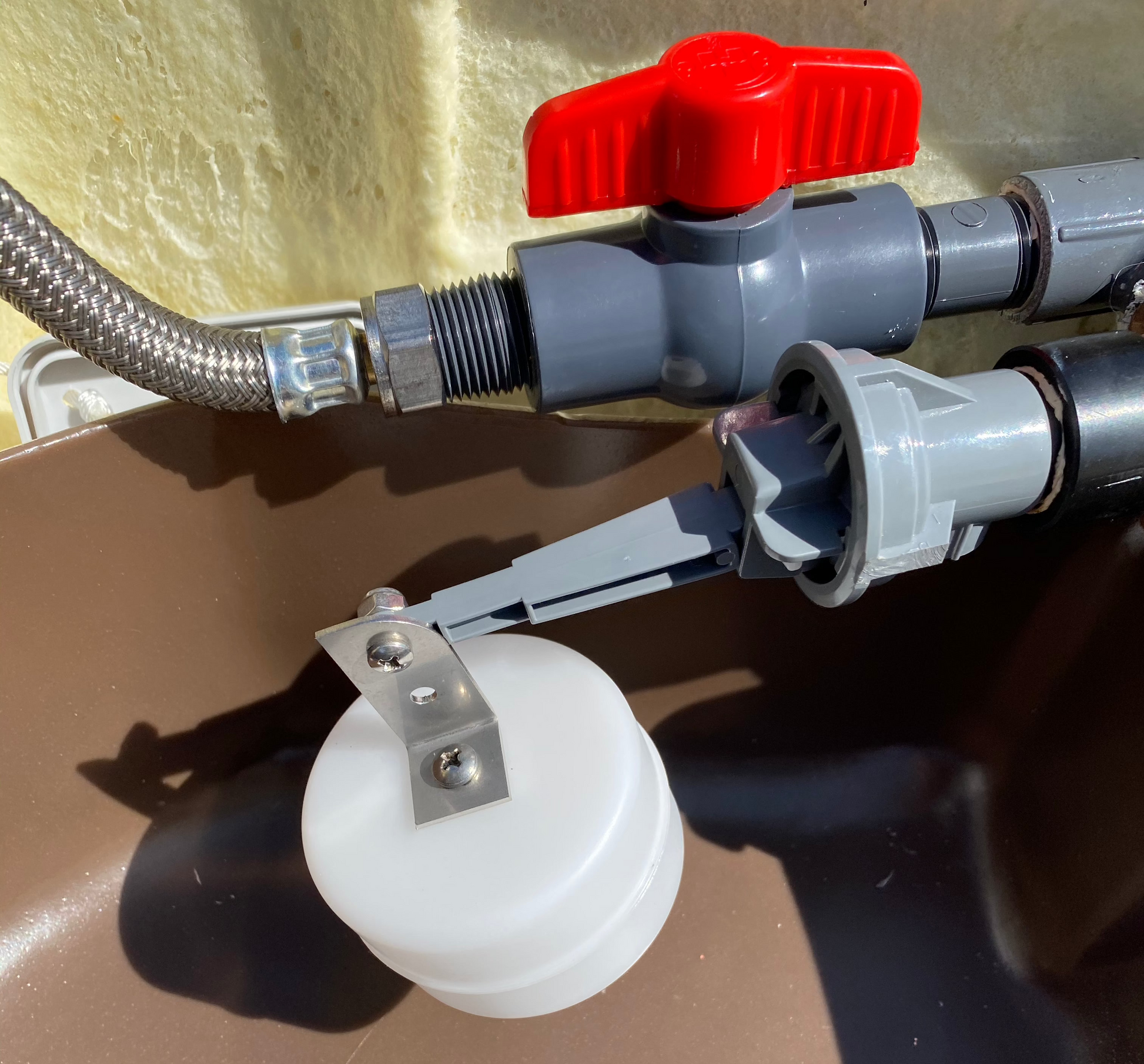

- Valve - The Fluidmaster Float Valve used on the 303 is among the most reliable, trouble-free valves available today.
- Energy Efficient- If you have a cold barn, you can count on the super insulation in the 303 WH (With Heat) to conserve heat loss. A low 30-watt heater that is thermostatically controlled gives you the added assurance of frost-free water. 303 energy usage is minimal.

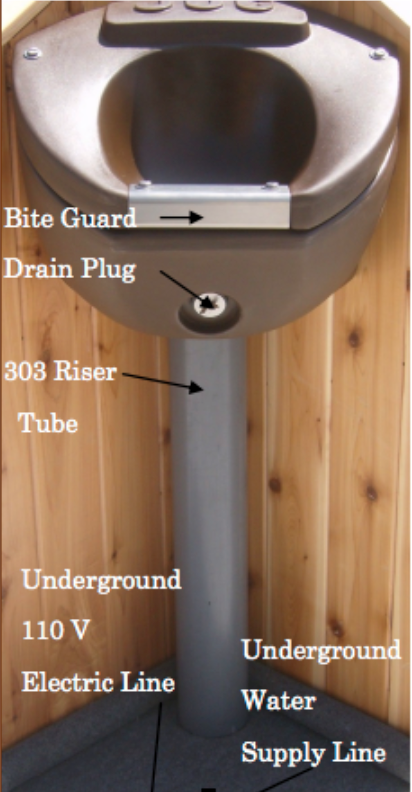

Water and electric lines run underground below the frost line, then up into the fountain through the Riser Tube. The 303 Riser Tube protects the water supply line from the cold by insulating it in urethane foam, and warming it with a low wattage heating element.
Modern, Yet Simple The 303 JUG features the most modern up-to-date styling available in a horse stall waterer. Yet the 303 is extremely simple with very few moving parts
303 Riser Tube Construction
Rugged 1/4” PVC Schedule 80 case. Available in 3FT, 4FT, 5Ft, 6Ft and 7Ft lengths, as well as 2Ft extensions. Super insulation provides protection against freeze-ups, lowers energy costs in the winter, and provides cooler water in the summer.
