Ritchie Omni 1 #18359 - Heated Livestock Waterer
Ritchie Omni 1 #18359 - Heated Livestock Waterer
Part Number 18359
Water up to 40 head beef/horses
Couldn't load pickup availability
5.0 / 5.0
(4) 4 total reviews

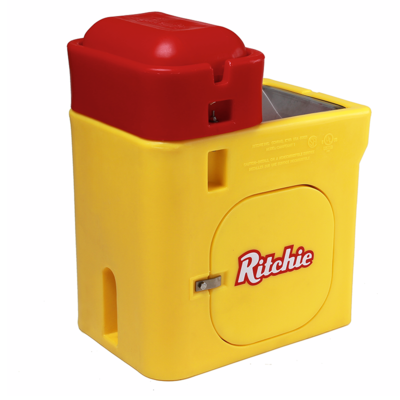

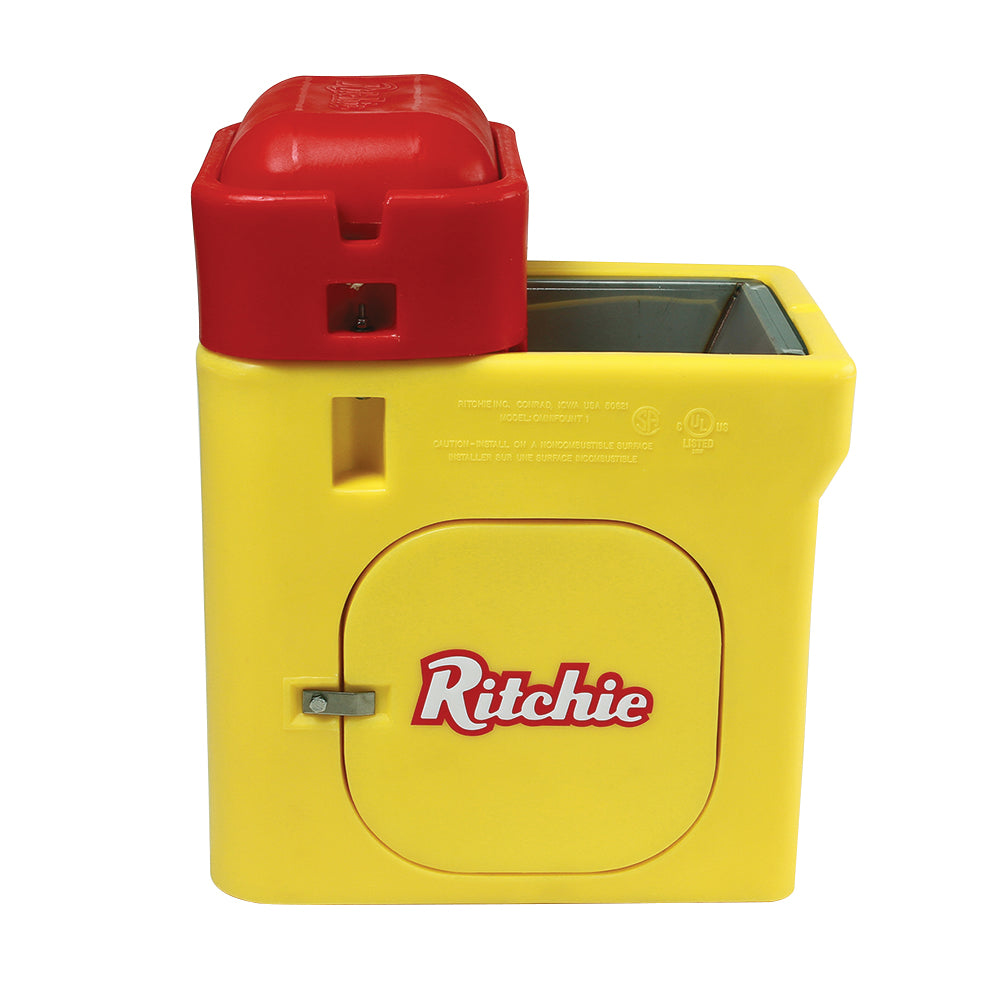

OmniFount Omni 1 Livestock Fountain – Advanced Design for Performance and Safety
The OmniFount combines the durability of traditional stainless steel units with the efficiency of insulated poly units, creating a top-tier livestock fountain. Engineered for animal safety, the Omni 1 features smooth, rounded edges and a fully insulated casing to maximize energy efficiency.
The stainless steel trough is equipped with thermostatically controlled heating elements mounted underneath, ensuring frost-free operation even in extreme winter conditions. With a fast refill valve, the Omni 1 provides fresh water to up to 20 head of cattle or horses, making it an ideal solution for your livestock needs.
Product Details
- Length: 20"
- Width: 14.5"
- Overall Height: 25"
- Drinking Height: 18"
- Shipping Weight: 25
- Heat: 173W (1.4A@120V)
- Capacity: 1.5 gallons
- Herd Capacity: 20 Beef / 20 horses
- Flow: Standard 40-60 PSI
Built for durability, energy efficiency, and winter performance, the Omni 1 is your complete solution for livestock watering.
These steps and accessories will help ensure your Ritchie waterer is installed effectively and performs reliably year-round.
Omni 1 Features – Premier Winter Livestock Waterer
- Exceptional Heat Coverage: Heating elements are located directly under the stainless steel trough for optimal performance.
- Valve and Supply Line Protection: Equipped with a cable heater for added safety.
- Energy Efficiency: Insulated with high-performance polyurethane foam (R-factor of 7 per inch) and a durable insulated casing.
- Easy Maintenance: Features a large access panel for hassle-free cleaning and upkeep.
- Livestock Capacity: Supplies water for 1-20 horses or cattle.
- Ready to Install: Comes complete for connection to your water and electric lines.
- Anchoring Recommendation: Use 4 stainless steel anchor bolts (5" x 3/8") for securing to a concrete pad.
- Warranty: Backed by a 10-year warranty.
Additional Accessories and Considerations:
- Anchor Bolts: Use 5" x 3/8" anchor bolts to secure the unit.
- Sealant: Apply an all-weather sealant around the base to prevent air gaps and cold from penetrating underneath.
- Electric Requirements: The Omni Series requires electricity for its heating system but remains energy efficient throughout winter.
- Water Pressure Regulation: High water pressure exceeding 60 PSI may cause valve leaks. Install a pressure regulator to maintain optimal performance.
- Stop and Waste Valve: Consider adding one to drain the line back to the source when not in use. This is a long-term solution to protect your waterline.
- Level Installation: Ensure the waterer is installed on a level surface for proper operation.
To install a Ritchie automatic waterer, you’ll need a buried waterline and a concrete pad.
